Kenwood NX-5700E

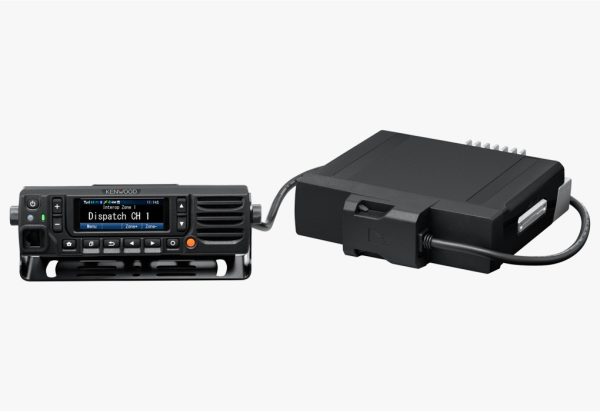

Kenwood NX-5700E VHF Digital & Analogue Mobile Radio
The Kenwood NX-5700E is a professional VHF digital and analogue mobile two-way radio designed for reliable communication in demanding operational environments. Part of the advanced NEXEDGE NX-5000 Series, it supports multiple communication protocols, making it ideal for security operations, transport fleets, emergency services and enterprise communications.
Featuring built-in GPS capability, Bluetooth connectivity, a 2.55-inch colour display and advanced encryption, the NX-5700E offers flexible, secure and efficient radio communication.
Key Features
- VHF Operation: 136–174 MHz frequency range.
- Multi-Protocol Support: NXDN digital and analogue FM, with optional DMR and P25 capabilities.
- Up to 25W Output: Adjustable RF transmission power from 1W to 25W.
- Built-In GPS Receiver: Supports location monitoring using a compatible GPS antenna.
- Bluetooth 4.0: Enables compatible wireless accessories.
- Colour LCD: 2.55-inch display for clear navigation and radio information.
- Advanced Encryption: Built-in 56-bit DES with optional AES encryption.
- High Channel Capacity: 1,024 channels across 128 zones, expandable through licensing.
- Emergency Features: Emergency calling, programmable controls and group communication.
- USB and microSD Support: Convenient connectivity and storage options.
Technical Specifications
| Specification |
Details |
| Brand |
Kenwood |
| Model |
NX-5700E |
| Radio Type |
VHF Digital/Analogue Mobile Radio |
| Frequency Range |
136–174 MHz |
| RF Output Power |
1–25W |
| Communication Modes |
NXDN, FM; optional DMR and P25 |
| Display |
2.55-inch Colour LCD |
| Channels |
1,024 standard |
| Zones |
128 |
| Bluetooth |
Version 4.0 |
| GPS |
Built-in receiver; compatible antenna required |
| Encryption |
56-bit DES; optional AES |
| Power Supply |
13.2V DC |
| Dimensions |
171 × 48 × 176 mm |
| Weight |
Approximately 1.6 kg |
The Kenwood NX-5700E provides dependable mobile radio communication for organisations requiring advanced functionality, secure connectivity and flexibility when upgrading from analogue to digital radio systems.
Available from Bison Technologies EA Ltd, Kenya.
Note: DMR, P25, expanded channel capacity and certain encryption features require optional licences or configuration. Radio operation is subject to applicable frequency licensing requirements.
